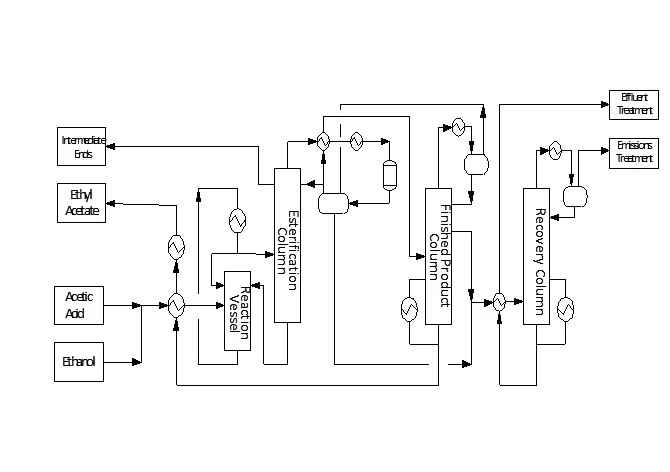

Simplified Process Flow Diagram
This diagram gives you a rough idea of how our ethyl acetate plant is configured.
There are 4 main prevailing processes for ethyl acetate production, i.e. Direct Esterification Process, Acetaldehyde Condensation Process, Ethanol Dehydration Process and Acetic Acid-Ethylene Addition Process. Each process has its advantages and its applicable services. Our process is based on reactive-distillation esterification, which is mature, low costing and suitable for those with acetic acid feedstock.
What is Ethyl Acetate
Ethyl acetate is colorless transparent liquid, low toxicity, sweet smell, irritating odor at higher concentration, volatile, sensitive to air, can absorb moisture, making it slowly hydrolyzed and acidic reaction. Can be miscible with chloroform, ethanol, acetone and ether, soluble in water (10%ml/ml). Can dissolve some metal salts (such as lithium chloride, cobalt chloride, zinc chloride, iron chloride, etc.) reaction. Relative density 0.902. Melting point -83℃. Boiling point 77℃. Refractive index 1.3719. Flash point 7.2℃(open cup). Flammable. Vapor can form explosive mixture with air. LD50 (rat, oral) 11.3ml/kg.
Processed in these plants using top quality ingredients, our offered products are highly miscible with diethyl ether, acetone, ethanol & benzene and are widely used in nail polish remover & glues.
Ethyl acetic acid derivation is additionally utilized in the development of counterfeit flavors and aromas. It is known for its quick vanishing rate and low harmfulness, pursuing it a favored decision in different enterprises. With its magnificent dissolvability power, ethyl acetic acid derivation actually breaks up numerous natural mixtures, making it a fundamental fixing in many assembling processes. This top notch dissolvable guarantees proficient and dependable outcomes, meeting the requesting needs of experts in the field. Whether you are a painter, a scent maker, or an espresso maker, ethyl acetic acid derivation is the best dissolvable for your necessities. Trust in its demonstrated history and pick ethyl acetic acid derivation for all your dissolvable necessities.
Advantages of Ethyl Acetate Plant and Process Technology
In our reactive distillation process, organic acid catalyst is used; its advantages cover the followings:
Low ethanol consumption
Low catalyst dosage
High catalysis activity
Low equipment corrosion
Less side reactions
Higher product purity
Simple post-treatment operations
Ethyl Acetate Plants are designed mixing acetic acid and ethyl alcohol in a balanced proportion through a preheater to a kettle reboiler for distillation purpose. In this plant, acetic acid and ethyl alcohol is mixed in a balanced proportion through a preheater to a kettle reboiler for distillation purpose. This plant is known for its robust construction and ability continuously running at even high speeds.
There are 4 main prevailing processes for ethyl acetate production, i.e. Direct Esterification Process, Acetaldehyde Condensation Process, Ethanol Dehydration Process and Acetic Acid-Ethylene Addition Process. Each process has its advantages and its applicable services. Our process is based on reactive-distillation esterification, which is mature, low costing and suitable for those with acetic acid feedstock.
These plants are used in various cosmetic, chemical and pharmaceuticals industries for processing and storage of various products.
Applications:
Liquor industry
Chemical industry
Pharmaceutical industry
Paint industry
Further, these plants and machines are designed and developed in different technical specifications, which fit the diverse requirements of the clients. We have gained immense appreciation among our clients for our manufactured and supplied assortment of Ethyl Acetate Plants.
150 tons/day ethyl acetate plant in Turkey
Hubei Sanli Fengxiang Technology Co., Ltd. is responsible for the EPC project of Turkey's 150 tons/day ethyl acetate refined EPC project, including design, procurement, commissioning, operation, training, etc. After experiencing the epidemic and other difficulties, we have successfully produced qualified products and completed the installation load acceptance work. Let us review the progress of the installation.
signing the contract
The contract was officially signed in 2019.
Device advantages
This device adopts three-tower thermal coupling energy-saving technology, which has the following advantages:
Energy saving and environmental protection, far below the industry's 1.6t/t steam consumption index;
Large load operation flexibility of the device;
High degree of self-control, simple operation;
Use new catalysts;
The process route is simple and the investment cost is low.
We are ethyl acetate plant in China and we can supply ethyl acetate Production Technology. Welcome to contact us!
