Specialized Formaldehyde Production Technology Plant

Our formaldehyde production plant is designed to ensure safe and efficient production of this versatile chemical.
With rigorous attention to quality and safety standards, our formaldehyde production plant is built to meet the demands of various industries. The plant is equipped with advanced technology and state-of-the-art machinery to ensure optimal performance and reliability.
Safety is our top priority, and our formaldehyde production plant is designed with multiple safety measures in place. From automated control systems to emergency shutdown procedures, we have implemented comprehensive safety protocols to protect both the workers and the environment.

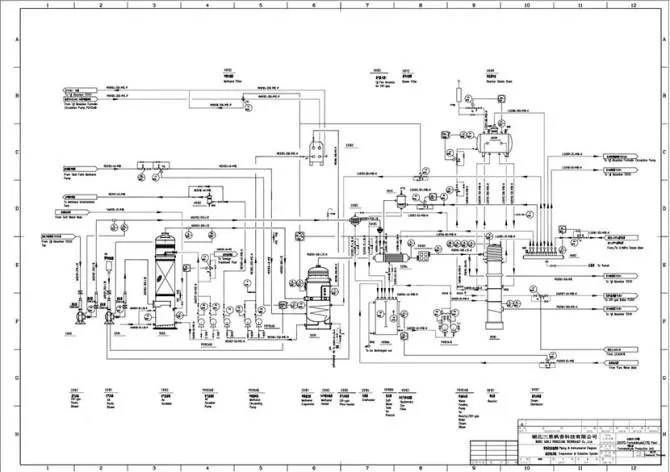

Process Flow Diagram for Specialized Formaldehyde Production Technology Provider in China

Technical Introduction for Specialized Formaldehyde Production Technology Provider in China

We have ten years experience in formaldehyde production technology based on silver contact process(or silver catalyzed process). A lower methanol consumption, higher formalin product concentration, high export steam capacity and ease of operation are our features, which makes it the best technical and economically viable solution.

Every unit operation incl. methanol evaporation, catalytic reaction, absorption, off-gas treatment has optional design to at best satisfy the customer's needs.

We provide one-stop package solutions from the formaldehyde plant design, manufacture, erection, commissioning, startup to training, with the production capacity of 6,000TPA – 120,000TPA and the formaldehyde product concentration varying from 37-55%. And according to the customer's different needs, there are totally 7 (seven) optional processes as follows:

1) Traditional Bubble Evaporator + Absorber with 3 (three) Concentration Gradients to produce 37% formalin

2) New Evaporator + Absorber with 3 (three) Concentration Gradients to produce 37% formalin

3) Off-gas Circulation + Re-boiler + Absorber with 3 (three) Concentration Gradients to produce 37-42% formalin

4) Off-gas Circulation + Re-boiler + Absorber with 3 (three) Concentration Gradients to produce 37-55% formalin

5) Off-gas Circulation + Evaporation Column + Absorber with 6 (six) Concentration Gradients to produce 37-55% formalin

6) Off-gas Circulation + Multipurpose Evaporator + Absorber with 6 (six) Concentration Gradients to produce 37-55% formalin

Technical Features for Specialized Formaldehyde Production Technology Provider in China

• High Conversion Yield

• Low Methanol Consumption

• Large Steam Export

• Easy Operation

• Long Service Life of Reactor

• Low Formic Acid Content in Formalin Product
